Analysis of an air heater
Problem Statement:
In the air heater, inlet air is at a low temperature. We need to find out the heat to be generated by the heater to obtain hot air at the outlet.
CFD:
Computational Fluid Dynamics (CFD) is the process of mathematically modelling a physical phenomenon involving fluid flow and solving it numerically using the computational process.
In a CFD software analysis, the examination of fluid flow in accordance with its physical properties such as velocity, pressure, temperature, density and viscosity is conducted. To virtually generate an accurate solution for a physical phenomenon associated with fluid flow, those properties have to be considered simultaneously.
A mathematical model of the physical case and a numerical method are used in a CFD software tool to analyze the fluid flow. For instance, the Navier-Stokes (N-S) equations are specified as the mathematical model of the physical case. This describes changes in all those physical properties for both fluid flow and heat transfer. A mathematical model varies in accordance with the content of the problem such as heat transfer, mass transfer, phase change, chemical reaction, etc. Moreover, the reliability of a CFD analysis highly depends on the whole structure of the process.

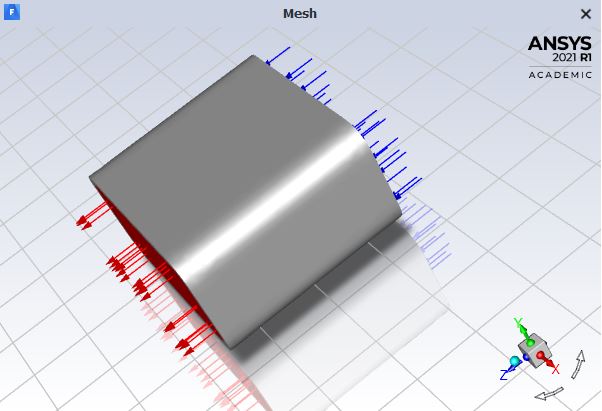

Computational Geometry:
Meshing:
Solution:
